50:50 Polyester Epoxy Resin

 50:50 Epoxy&Polyester Resin HH2582 for bonding metallic powder paint

◇ Applications:

HH2582 is a carboxyl polyester resin designed for 50/50 hybrid powder coatings to be cured at 180℃.

The balance between high leveling, high weather resistance and mechanical properties of powder coating was solved through the design of product molecular structure, the screening of monomers and new additives.

The coating is prepared by mixing resin, pigment and filler, curing agent and other additives in a certain proportion, and then by hot extrusion, crushing and screening. They are stored stably at room temperature. After electrostatic spraying or fluidized bed dip coating, they are heated, baked, melted and solidified to form a flat and bright permanent film, so as to achieve the purpose of decoration and anti-corrosion.

◇ Basic features:

Excellent mechanical properties

Excellent chemical performance

Good leveling

Good storage stability

◇ Specifications:

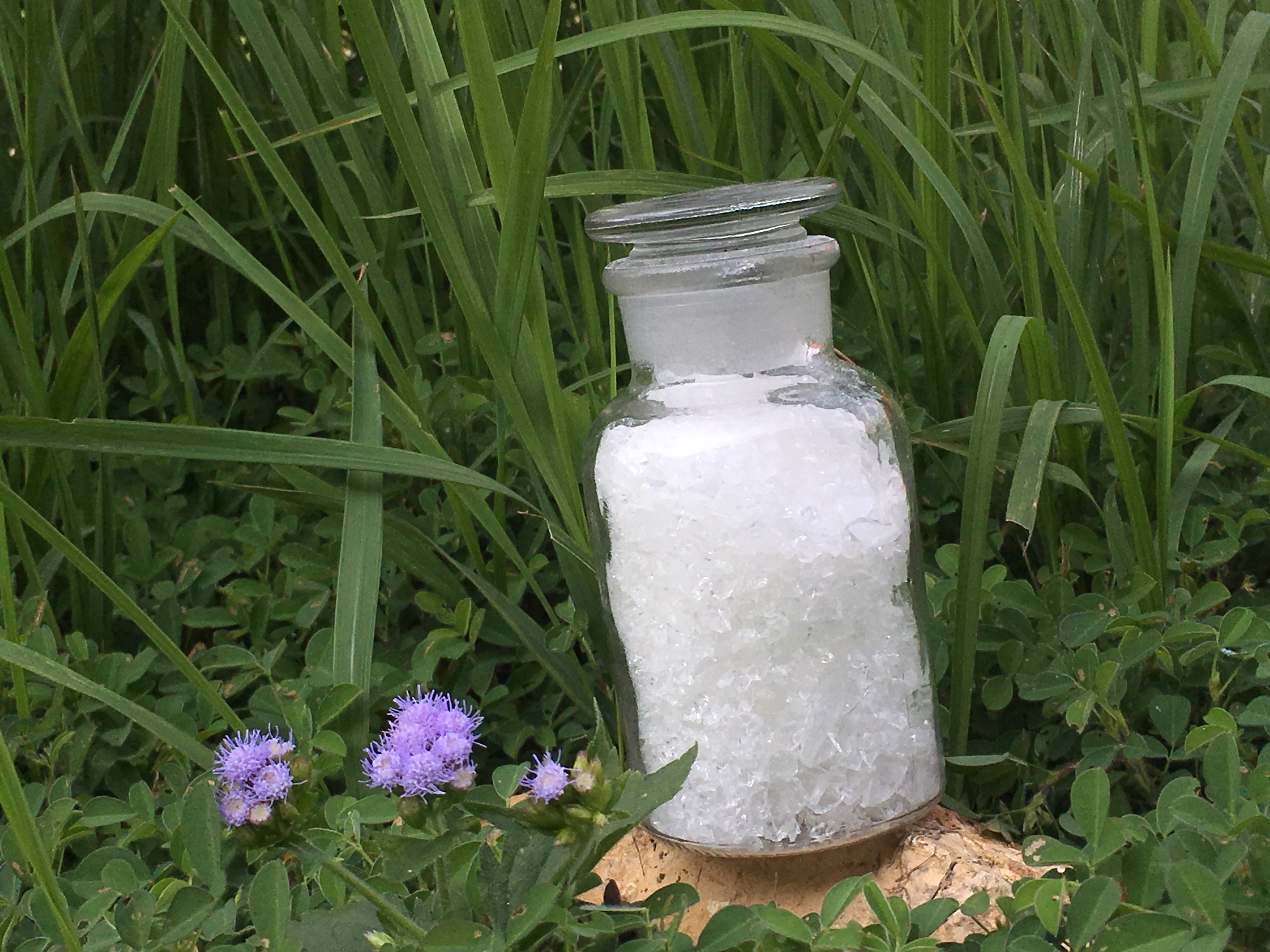

Appearance white or light yellow transparent flakes

Color(50%DMF) max:3

Acid number(mgKOH/g): 65～75

Softening point(℃) 97～107

Glass transition temp.( ℃) ～58

Melting viscosity(200℃, cone/plate, mPa·s): 2700±500

Reactivity at 180℃(s, 50% Epoxy): 170±25

◇ Recommend Formulation:HH-2582—E12

◇ Extrusion Condition:

Two-screw extruder

Zone I: 90～110℃ Zone II: 110～120℃

Speed of revolution: 500～1200rpm

Fineness of powder: ＜100μm

◇ Application Condition:

Electrostatic spraying with: 40～70KV

Coating film thickness: 50～70μm

Degreased cold-rolled steel 0.5mm

◇ Curing Requirement: 180℃×15min or 200℃×10min

◇ Film Properties:

Gel time(180℃,sec): 200~300

Horizontal flow:(180℃),mm: 25~28

Gloss(60°): ≥90%

Bending(φ1mm): pass

Adhesive(1mm,grade): 0

Pencil hardness: 1H

Impact(direct, reserve): pass 50kg·cm

Remarks:all the polyester resins could be customizes to Non-tin (A) ,anti gas burners(G),tribo gun(T) and anti-blooming(F)
