| Place of Origin: | CHINA |
|---|---|
| Brand Name: | KINTE |
| Certification: | Qualicoat,ISO90001,ISO14000,Reach |
| Model Number: | HH2583 |
| Minimum Order Quantity: | 500KG |
| Price: | Negotiable |
| Packaging Details: | 25kg/PE bag , 875KG/PALLET , 17,500KG/ 20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 80,000tons/year |
| Specification: | 50/50 Hybrid Cure | Application: | Low Gloss And Matte Powder Coating |
|---|---|---|---|
| Advantage: | Easy To Get Low Gloss And Good Flow | Property: | Good Flow,high Gloss,excellent Chemical Resistance |
| Ratio: | 50/50 | Curing: | 180°C/15mins |
| Highlight: | Polyester Epoxy Resin 50/50,saturated Polyester Epoxy Resin,saturated polyester 50/50 |
||
Epoxy&Polyester Resin HH2583 for low gloss powder paint
◇ Applications:
HH2583 is a carboxyl polyester resin designed for 50/50 hybrid powder coatings with low gloss.
◇ Basic features:
Excellent extinction performance
Good mechanical properties
Good storage stability
Not suitable for high gloss coating.
◇ Specifications:

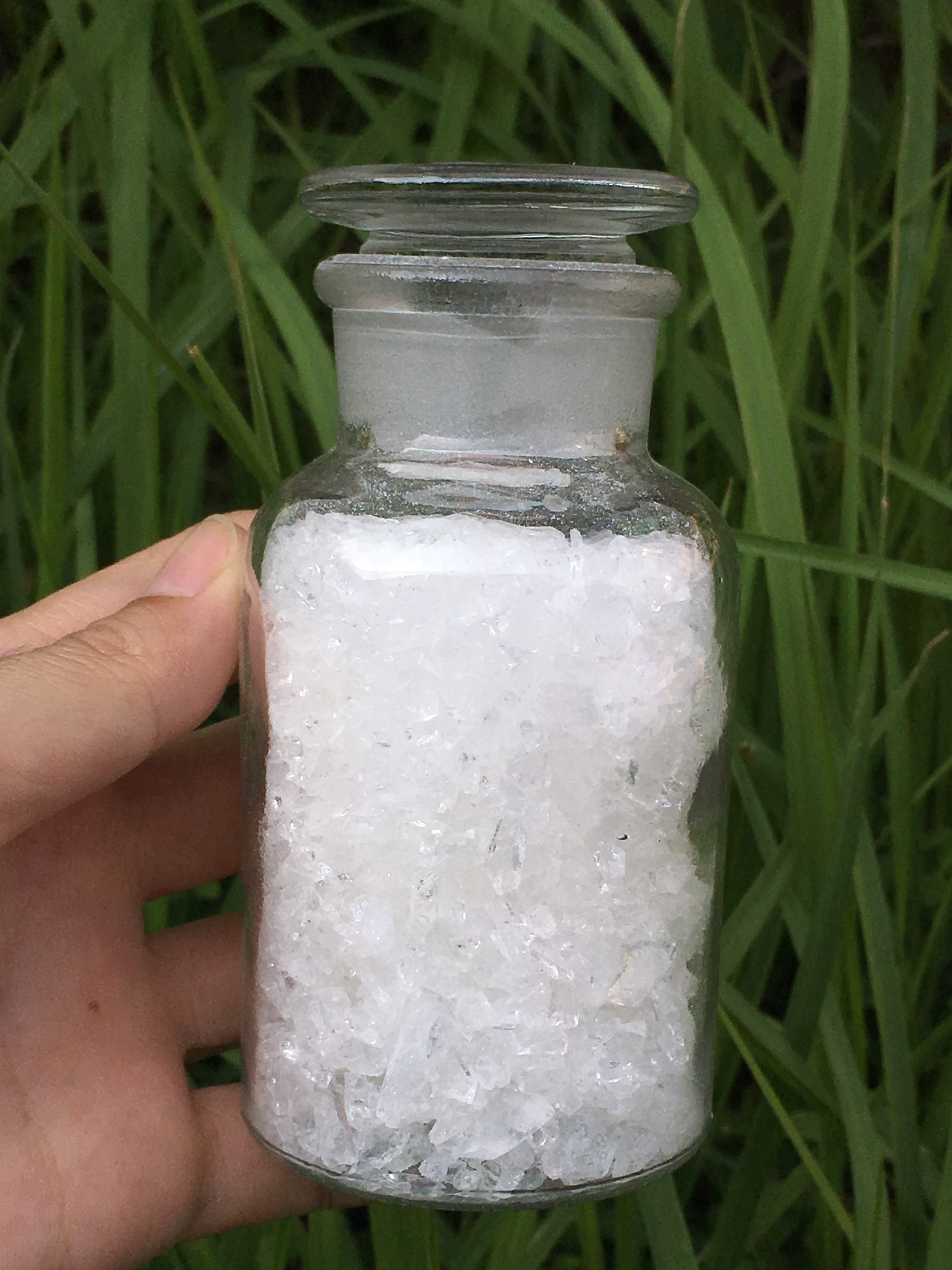

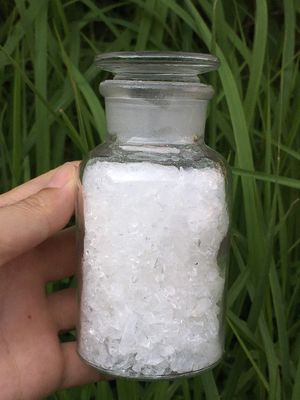

Appearance white or light yellow transparent flakes
Color(50%DMF) max:3
Acid number(mgKOH/g): 69～75
Softening point(℃) 93～103
Glass transition temp.( ℃) ～53
Melting viscosity(200℃, cone/plate, mPa·s): 3500~5500
Reactivity at 180℃(s, 50% Epoxy): 150～250
◇ Recommend Formulation:HH-2583—E12
| HH-2583 | E12 | Filler ＆ pigment | Leveling agent | Benzoin | Carbon black | Matting agent |
| 270 | 270 | 384 | 10 | 4 | 6 | 48 |
◇ Extrusion Condition:
Two-screw extruder
Zone I: 90～110℃ Zone II: 110～120℃
Speed of revolution: 500～1200rpm
Fineness of powder: ＜100μm
◇ Application Condition:
Electrostatic spraying with: 40～70KV
Coating film thickness: 50～100μm
Degreased cold-rolled steel 0.5mm
◇ Curing Requirement: 180℃×15min. or 200℃×20min.
◇ Film Properties:
Gel time(180℃,sec): 50~150
Horizontal flow:(180℃),mm: 20~24
Gloss(60°): ≤10%
Bending(φ1mm): pass
Adhesive(1mm,grade): 0
Pencil hardness: 1H
Impact(50cm): +50, -40
Remarks:all the polyester resins could be customizes to Non-tin (A) ,anti gas burners(G),tribo gun(T) and anti-blooming(F)
