| Place of Origin: | CHINA |
|---|---|
| Brand Name: | KINTE |
| Certification: | ROHS,ISO90001,ISO14000,Reach,Qualicoat |
| Model Number: | NH8306 |
| Minimum Order Quantity: | 500KG |
| Price: | Negotiable |
| Packaging Details: | 25kg/PE bag , 875KG/PALLET , 17,500KG/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 80,000tons/year |
| Specification: | TGIC Cure | Application: | Good At Dark Color Powder Coating |
|---|---|---|---|
| Advantage: | Excellent Boiling Water Resistance | Property: | Good Weathering Resistance |
| Ratio: | 93/7 | Curing Condition: | 200°C/10mins |
| Highlight: | 93:7 epoxy resin polyester,TGIC Cure Resin Polyester,TGIC cure clear polyester resin |
||

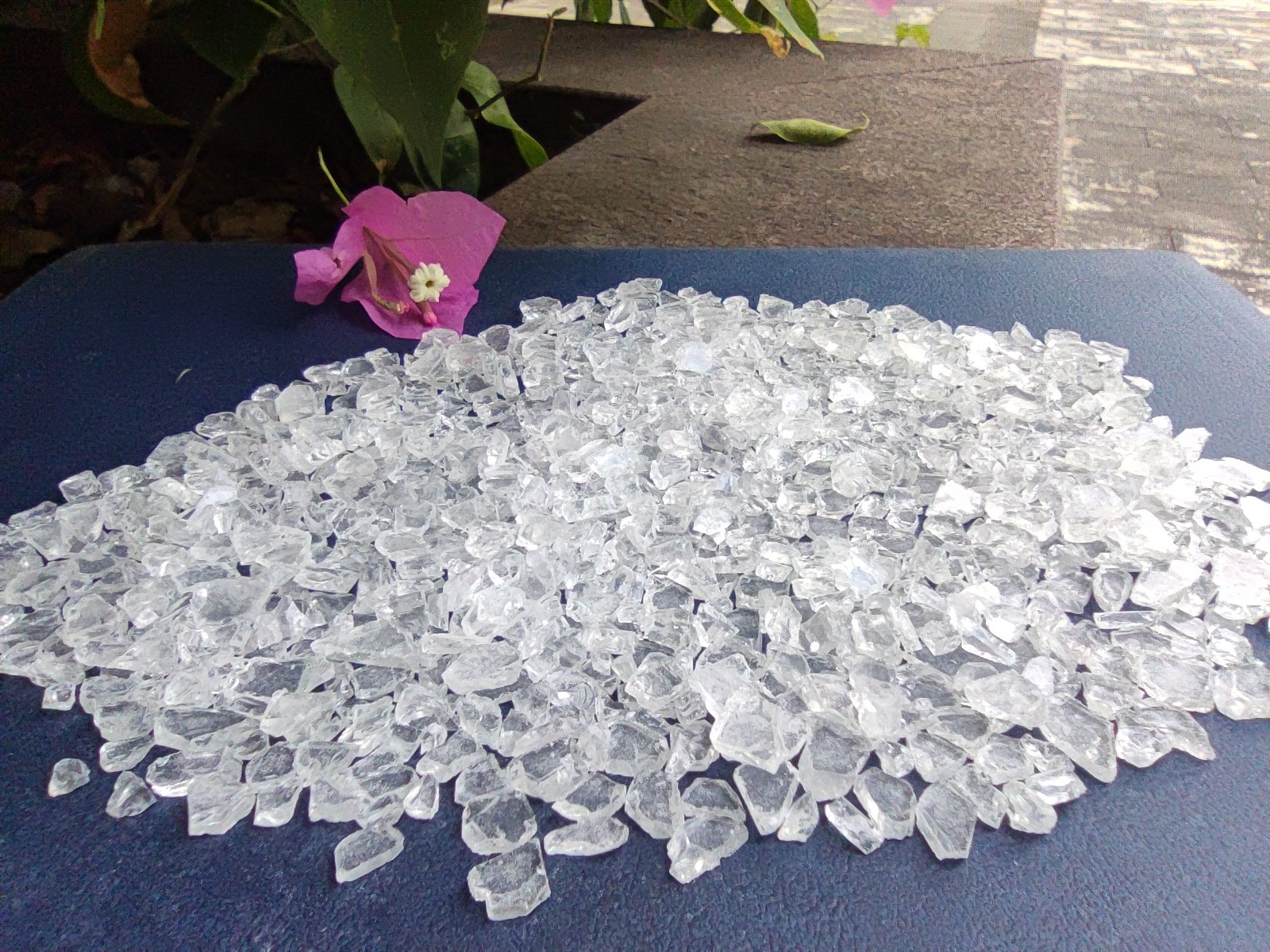

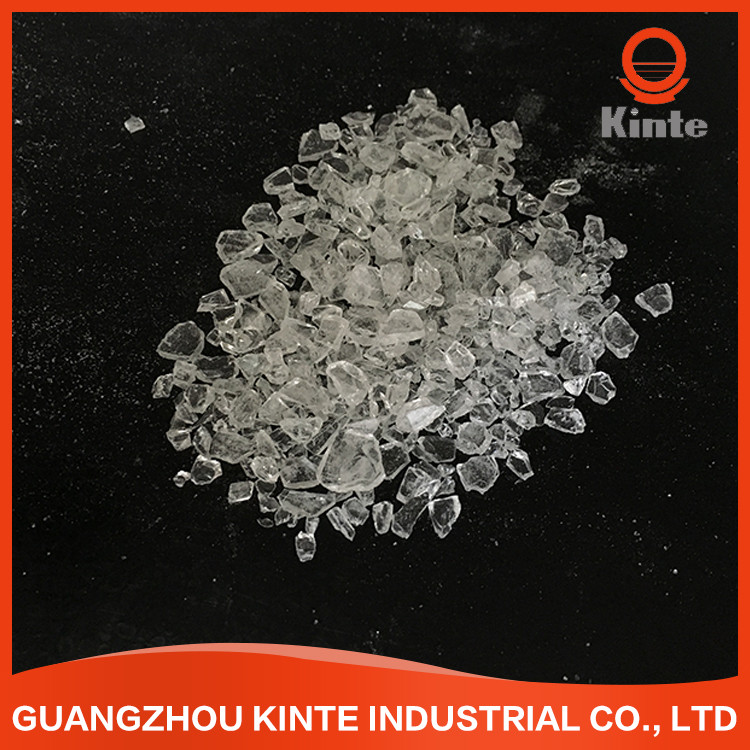

Polyester Resin NH8306 with Excellent Boiling Water Resistance and very Suitable for Dark Color Powder Coating
◇ Applications:
NH8306 is a saturated carboxyl 93/7 polyester resin for polyester/TGIC powder coating system.
◇ Basic features:
Marvelous boiling water resistance
Small color difference after water-boiling
Good weathering resistance
Good color retention
Suitable for dark color powder coatings
◇ Specifications:
Appearance white or pale yellow transparent granule
Color (50%DMF): max: 3
Acid number(mgKOH/g): 31～34
Softening point(℃): 103～113
Glass transition temp.(℃): ～67
Melting viscosity(200℃, cone/plate, mPa·s): 6000～8000
Reactivity at 180℃(s, 7% TGIC): 180～250
◇ Recommend Formulation:
NH8306—TGIC
| NH8306 | TGIC | Filler ＆ pigment | Leveling agent | Benzion | 701 |
| 558 | 42 | 383 | 8 | 4 | 5 |
◇ Extrusion Condition:
Two-screw extruder
Zone I: 90～110℃ Zone II: 110～120℃
Speed of revolution: 500～1200rpm
Fineness of powder: ＜100μm
◇ Application Condition:
Available for electrostatic spraying with: 40～70KV
Film thickness: 70～90μm
Degreased cold-rolled steel 0.5mm
◇ Curing Requirement: 200℃×10min
◇ Film Properties:
Gel time(180℃,sec): 250~350
Horizontal flow:(180℃), mm: 22~25
Gloss(60°): ≥88%
Bending(φ1mm): Pass
Adhesive(1mm,grade): 0
Pencil hardness: ≥1H
Impact (50cm): pass
◇ Packaging:
PE bags, N.W. 25KG±0.1KG / bag
Remarks:
All the polyester resins could be specialized to Non-tin (A) ,anti gas burners(G),tribo gun(T) and anti-blooming(F)
The consistency and stability of products are guaranteed through rigorous quality inspection.
