| Place of Origin: | China |
|---|---|
| Brand Name: | KINTE |
| Certification: | ROHS, ISO90001, ISO14000, Reach, Qualicoat |
| Model Number: | NH3295H |
| Minimum Order Quantity: | 1000Kg |
| Price: | Negotiable |
| Packaging Details: | 25Kg/PE Bag, 875Kg/Pallet, 17,500Kg/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 80,000 tons per year |
| Curing System: | 92/8 Polyester/TGIC | Curing Condition: | 200℃×10min |
|---|---|---|---|
| Acid Value (mgKOH/g): | 41-45 | Viscosity (mPa·s/200℃): | 4400-5600 |
| Softening Point(℃): | 105～115 | Glass Transition Temp.(℃): | ～ 69 |
| Properties: | High Tg And Good Leveling | Application: | Suitable For Heat Transfer Powder Coating |
| Highlight: | High Tg TGIC Polyester Resin,Powder Coating TGIC Polyester Resin |
||
92/8 Polyester Resin with High Tg, TGIC Polyester Resin for Heat Transfer Powder Coating
◎Introduction
NH3295H is a saturated carboxyl polyester resin for polyester/TGIC powder coating system at the ratio 92/8. Suitable for heat transfer powder coating with clear transfer pictures.
Heat transfer powder coating is a process of technology of heat transfer printing finished on the powder coating surface.The coating is specialized designed so that pictures and patterns on the heat transfer paper of films can be well transferred on the coating surface. It makes the coating with a lot of patterns, such as wood effects, marble effects, stone effects, etc.
◎Basic Features
High TG
Good leveling
Good storage stability
Good weathering resistance
◎Recommend Formulation: NH3295H—TGIC
| NH3295H | TGIC | Filler ＆ Pigment | Flow agent | Benzoin | 701 |
| 558 | 48 | 383 | 8 | 4 | 5 |
◎Specifications:
| Appearance | White or light yellow transparent flakes |
| Color (50% DMF) | max:3 |
| Acid Number (mgKOH/g) | 41～45 |
| Softening Point (℃) | 105～115 |
| Glass Transition Temp. (℃) | ～69 |
| Melting Viscosity (200℃, cone/plate, mPa·s) | 4400～5600 |
| Reactivity at 180℃ (s, 8% TGIC) | 160～280 |
| Curing Requirement | 200℃×10min |
| Packaging | PE Bags, Net Weight 25kg ± 0.1kg / bag |
◎Remarks: All the polyester resins could be customized to Non-tin (A), anti gas burners (G), tribo gun (T) and anti-blooming (F).

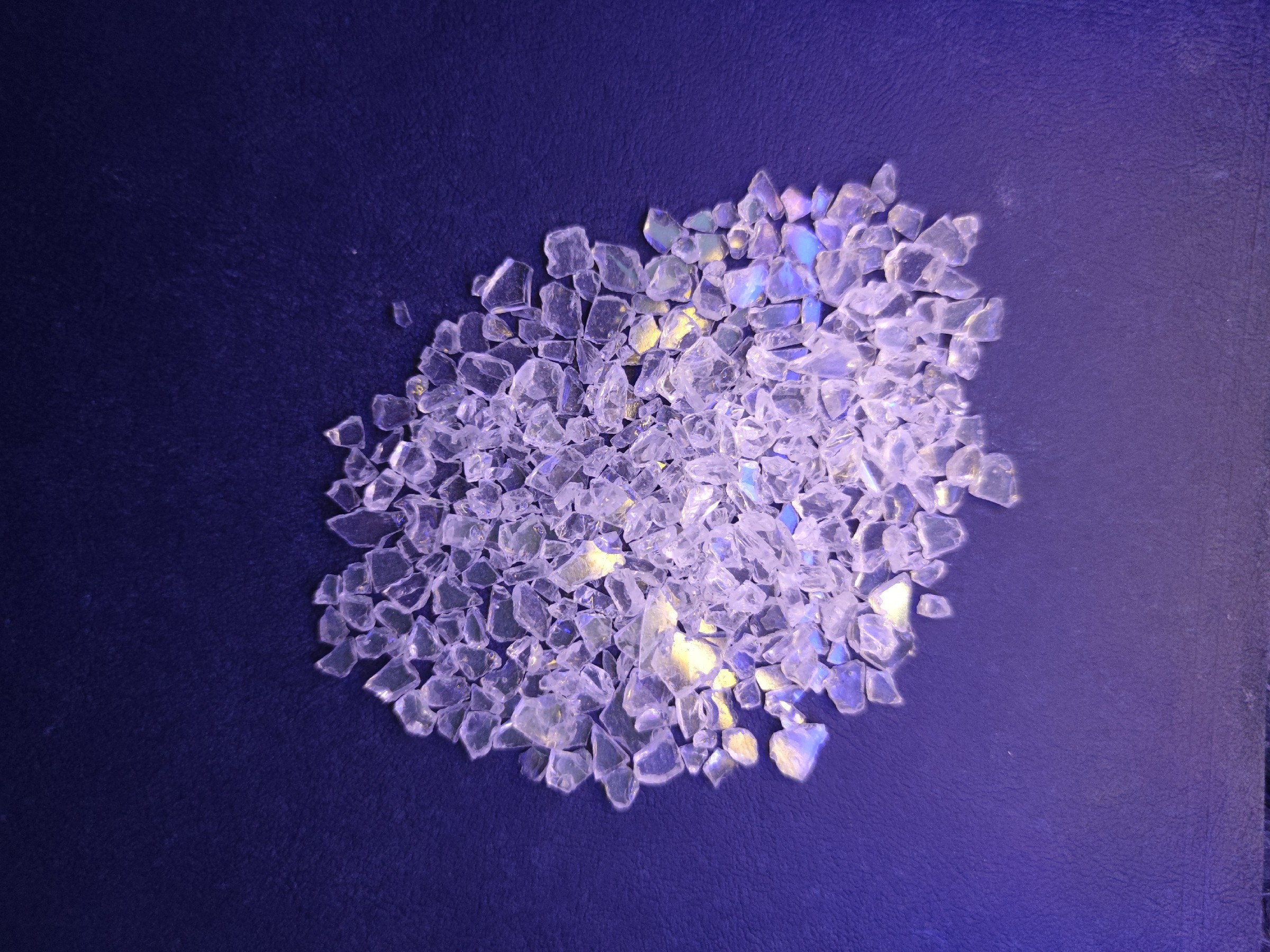

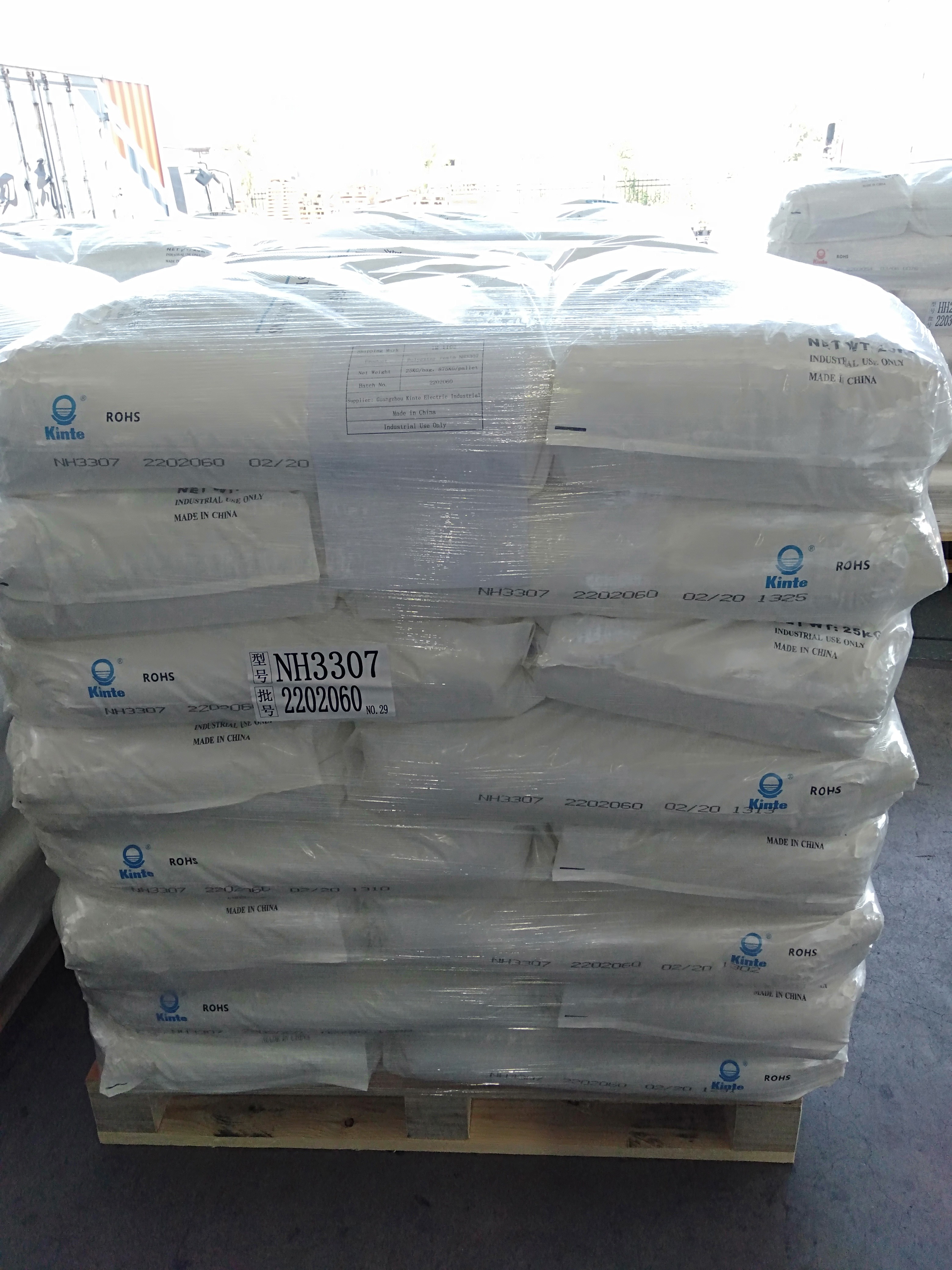

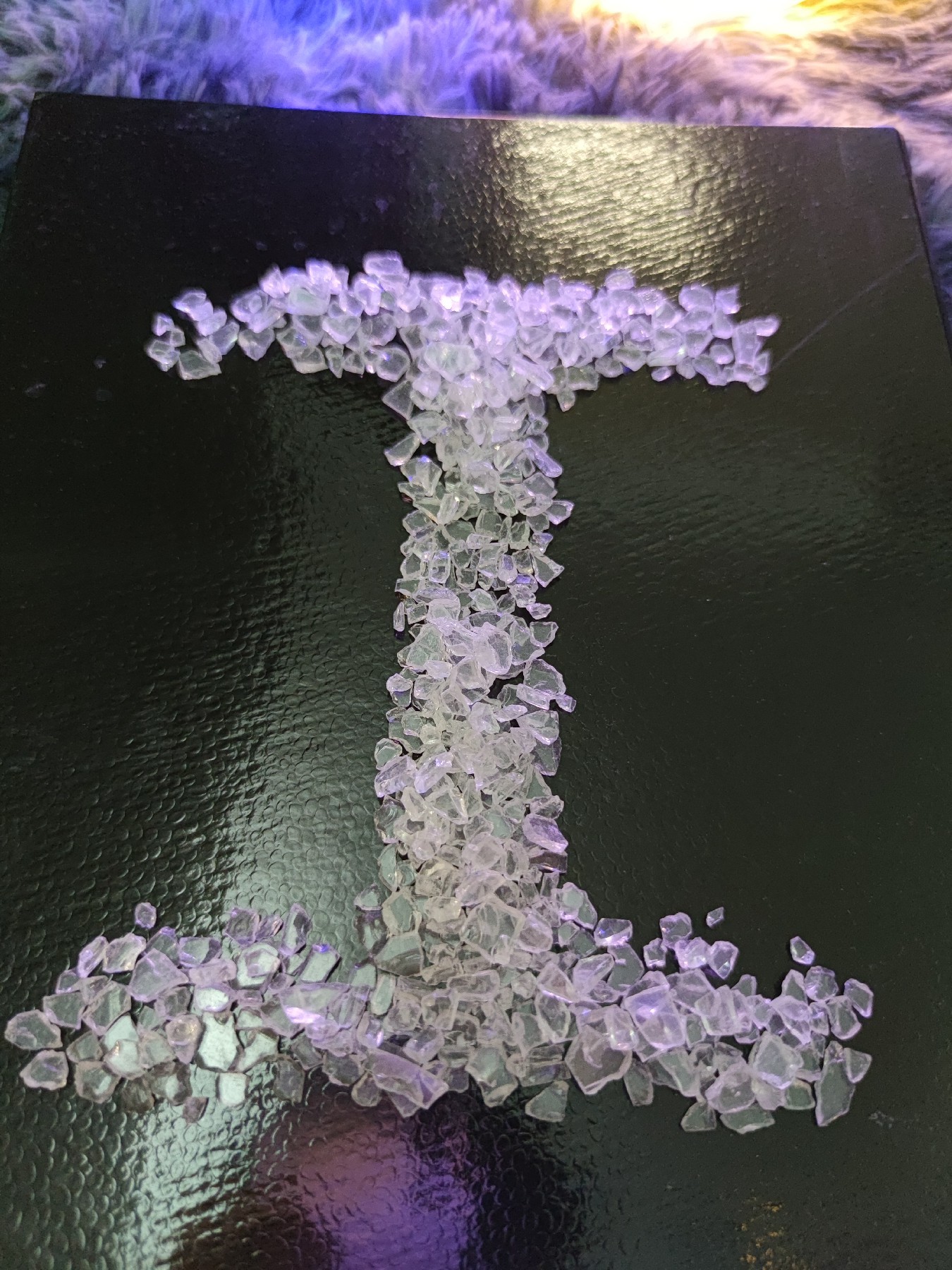

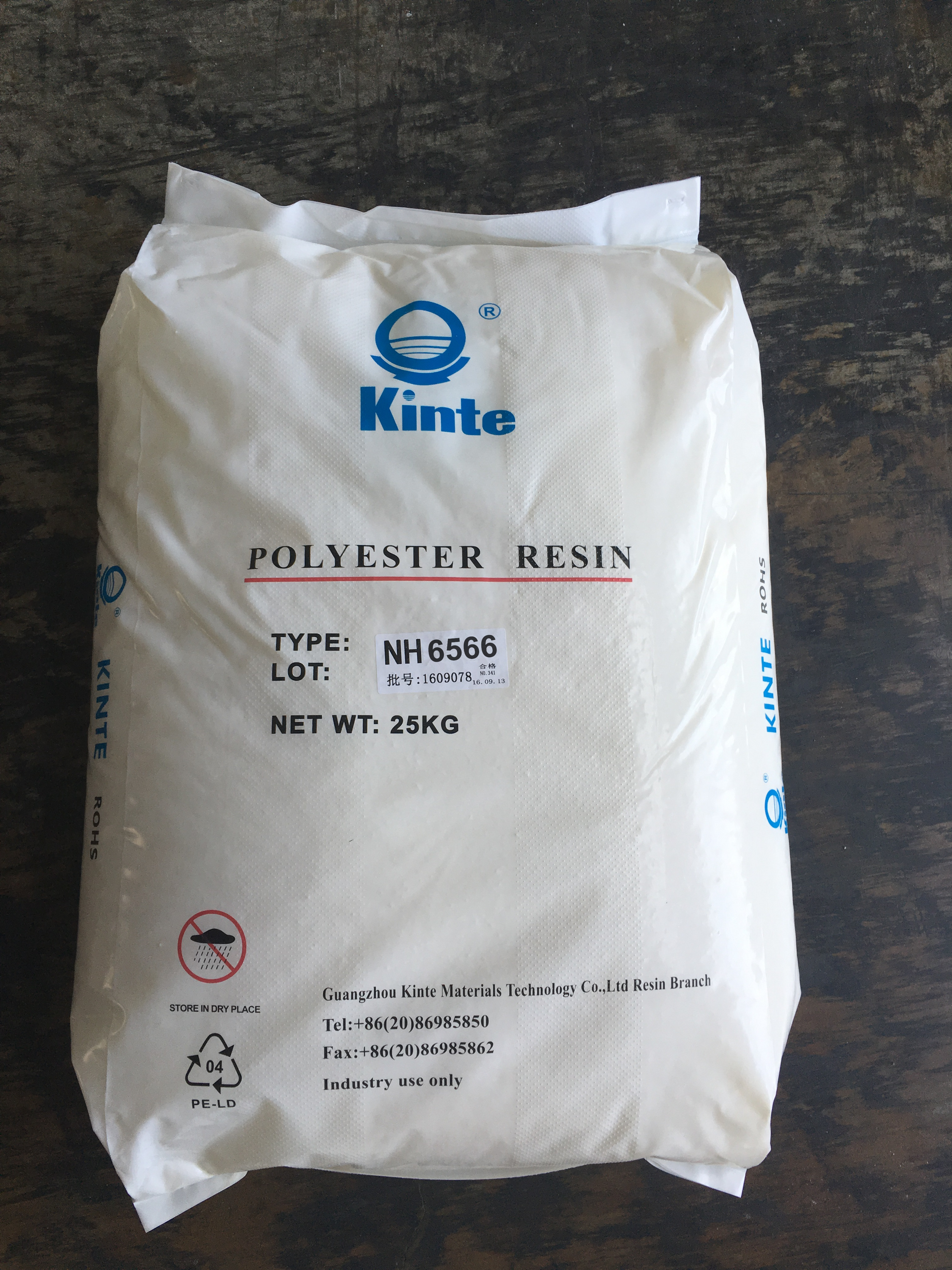

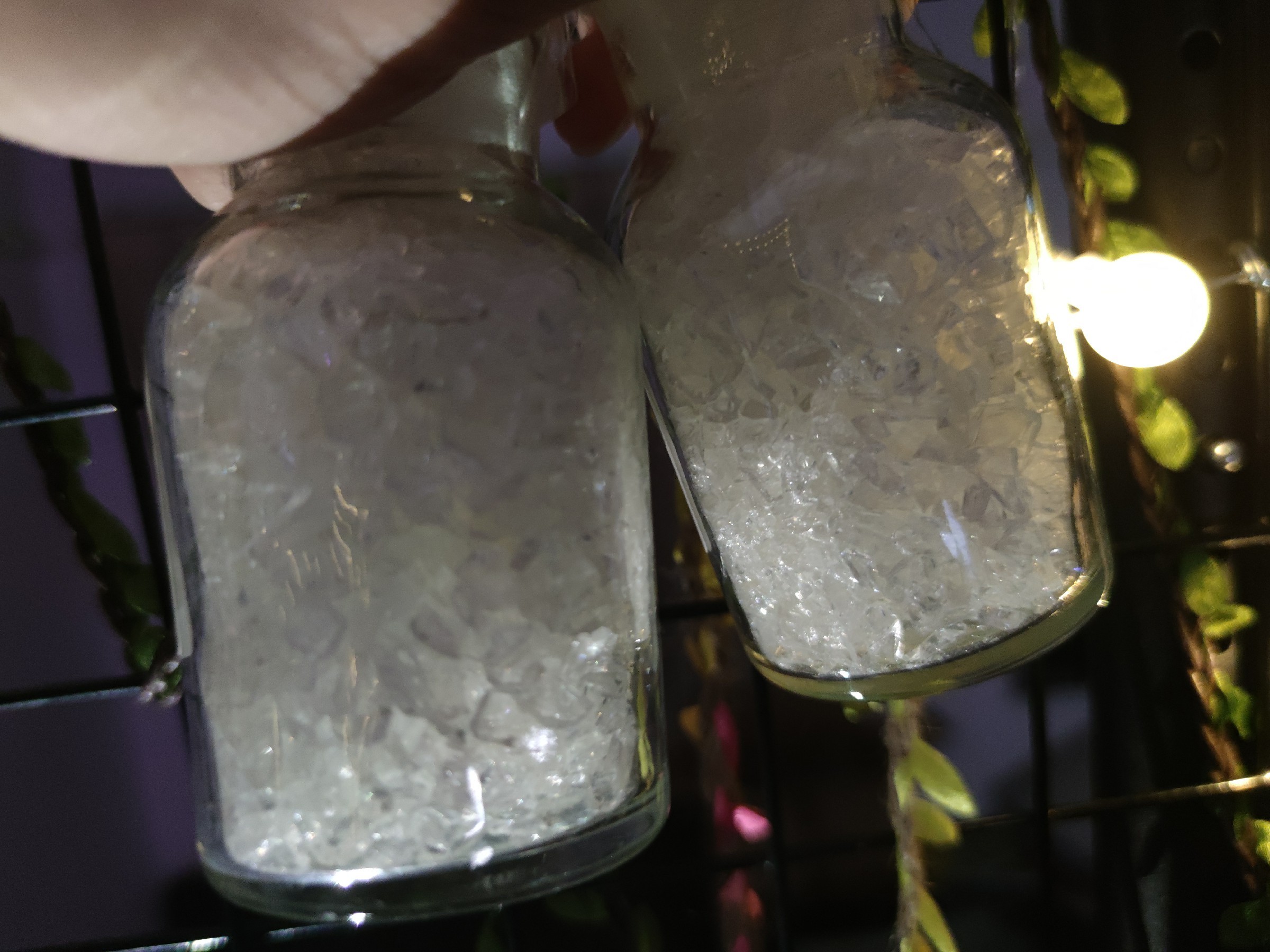

◎Product Show:
