| Place of Origin: | China |
|---|---|
| Brand Name: | KINTE |
| Certification: | ISO14000, ISO90001, Reach, Qualicoat, ROHS |
| Model Number: | HH2681 |
| Minimum Order Quantity: | 1000kg |
| Price: | Negotiable |
| Packaging Details: | 25Kg/PE Bag, 875Kg/Pallet, 17,500Kg/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 80,000 tons per year |
| Cure Ratio: | 60/40 Polyester/Epoxy | Cure Time: | 180℃×10min |
|---|---|---|---|
| Acid Value (mgKOH/g): | 53-60 | Viscosity (mPa·s/200℃): | 2500～4500 |
| Softening Point(℃): | 95～105 | Glass Transition Temp.(℃): | ～ 54 |
| Properties: | Fast Curing And Excellent Mechanical Properties | Application: | For 60/40 Hybrid Powder Paints |
| Highlight: | 60/40 Polyester Epoxy Resin,Fast Curing Polyester Epoxy Resin |
||
Fast Curing 60/40 Polyester Epoxy Resin for Hybrid Powder Coatings
◎Introduction
HH2681 is a saturated polyester resin mainly applied to polyester/epoxy powder coatings. It features fast curing, excellent mechanical properties, and good storage stability.
Polyester/epoxy powder coatings are a kind of thermosetting powder coating. It is prepared by using epoxy resin and polyester resin as the main raw materials and has their own unique properties so that the produced coating film has excellent leveling, decorative, mechanical properties, and strong corrosion-resistance, widely used in the coating of various indoor metal products.
Conventional polyester/epoxy powder coatings generally need to be baked at 180℃ or 200℃ for 15 to 20 minutes to fully cure, while powder coatings prepared with HH2681 and 40% epoxy resin only need 10 minutes of baking time at 180℃ to fully cure, reducing curing time and saving energy.
◎Basic Features
Fast curing
Excellent mechanical properties
Good storage stability
◎Recommend Formulation:
|
HH2681 |
014U |
Filler ＆ Pigment | Leveling agent | Benzoin | 701 |
| 180 | 120 | 192 | 2 | 2 | 2.5 |
◎Specifications I:

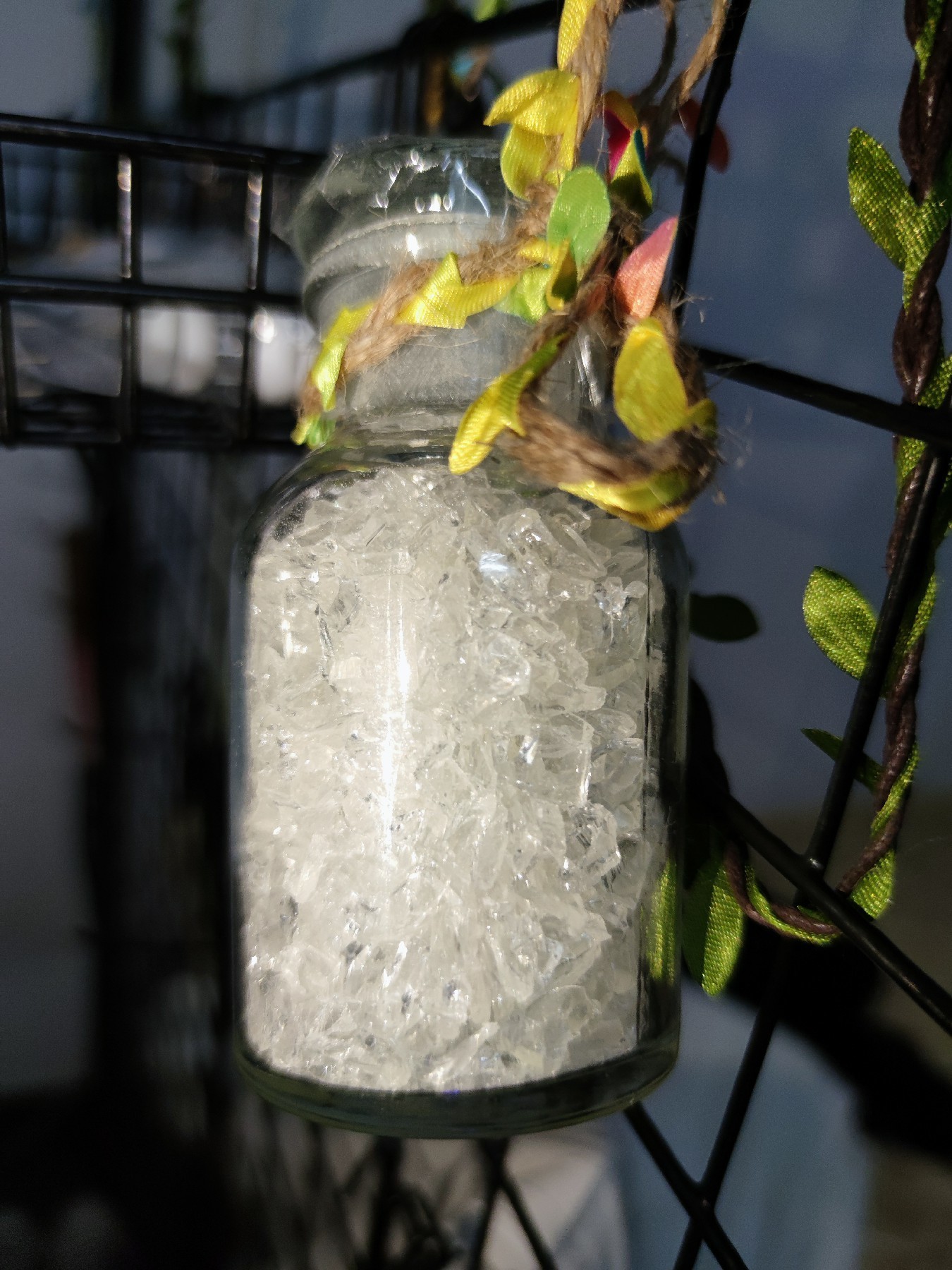

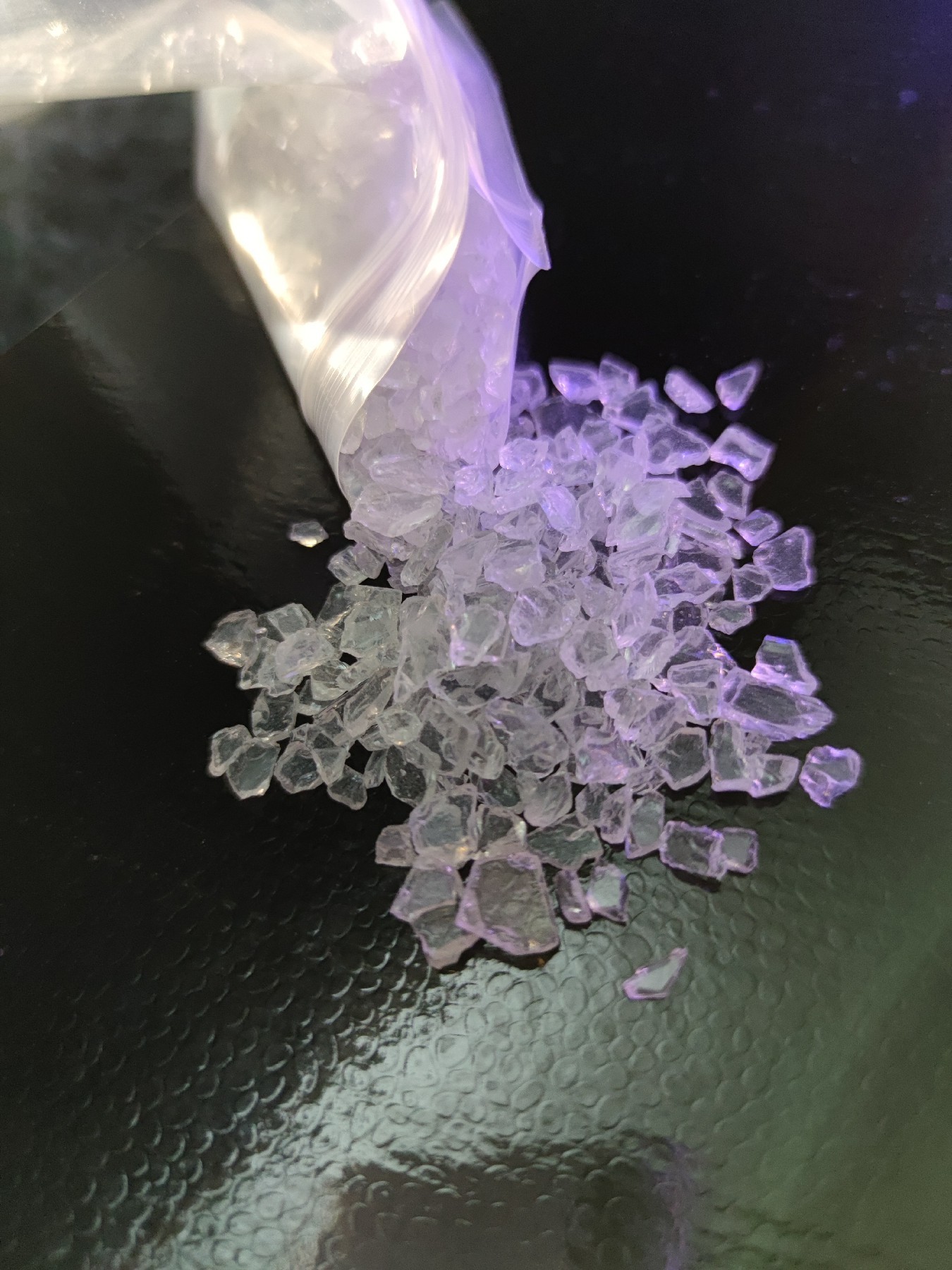

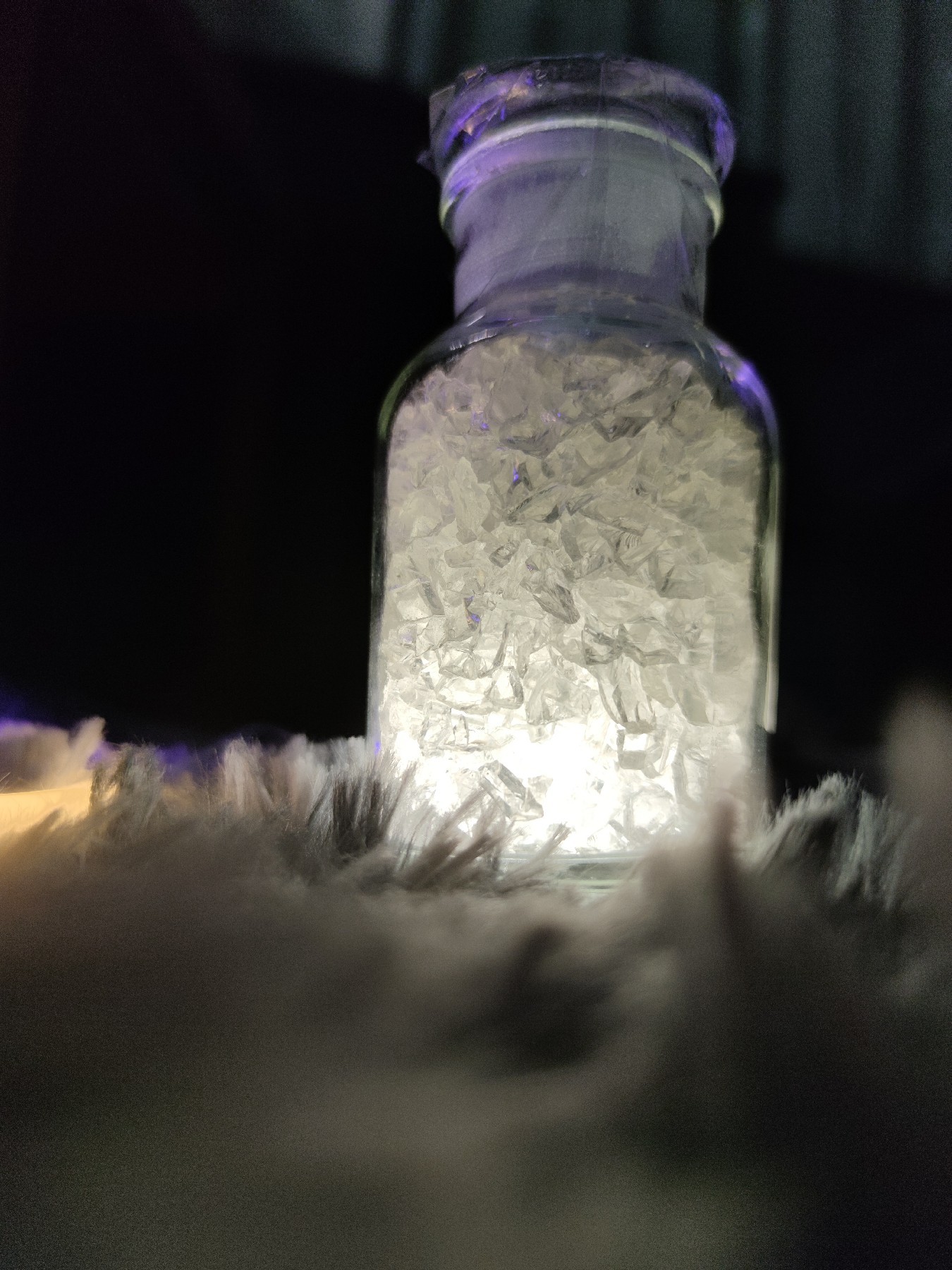

| Appearance | White or light yellow transparent flakes |
| Color (50%DMF) | max:3 |
| Acid Value (mgKOH/g) | 53～60 |
| Softening Point (℃) | 95～105 |
| Glass Transition Temp. (℃) | ～54 |
| Melting Viscosity (200℃, cone/plate, mPa·s) | 2500～4500 |
| Reactivity at 180℃ (s, 40% Epoxy) | 90～150 |
| Curing Requirement | 180℃×10min |

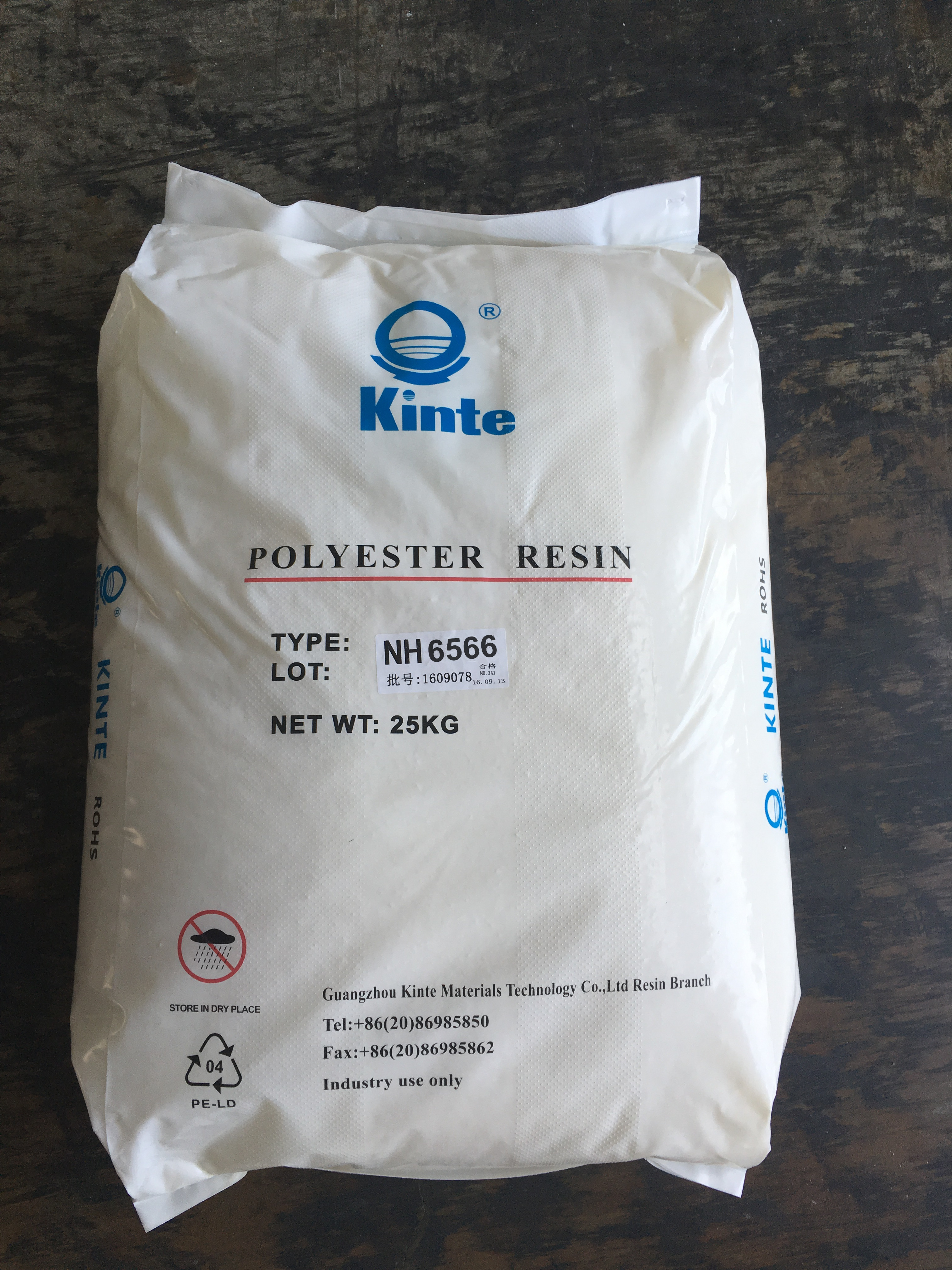

| Packaging | PE Bags, Net Weight 25kg ± 0.1kg / bag |
◎Specifications II:
| Extrusion Condition | Two-screw Extruder | |
|
Jacket temperature |
110～120℃ | |
| Speed of Revolution | 500～1200rpm | |
| Fineness of Powder | ＜100μm | |
| Application Condition | Electrostatic Spraying With | 40～70KV |
| Coating Film Thickness | 50～70μm | |
| Degreased Cold-rolled Steel | 0.5mm | |
| Film Properties | Gel Time (180℃, sec) | 90~150 |
| Horizontal Flow (180℃, mm) | 23~33 | |
| Gloss (60°) | ≥90% | |
| Bending (φ1mm) | Pass | |
| Adhesive (1mm, grade) | 0 | |
| Pencil Hardness | ≥1H | |
| Impact | Pass 50kg·cm | |
◎Remarks:
All the polyester resins could be customized to Non-tin (A), anti-gas burners (G), tribo gun (T), and anti-blooming (F).
