| Place of Origin: | China |
|---|---|
| Brand Name: | KINTE |
| Certification: | ROHS, ISO90001, ISO14000, Reach, Qualicoat |
| Model Number: | NH6567 |
| Minimum Order Quantity: | 1000kg |
| Price: | Negotiable |
| Packaging Details: | 25Kg/PE Bag, 875Kg/Pallet, 17,500Kg/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 80,000 tons per year |
| Features: | Excellent Impact Resistance | Cure Type: | 95:5 HAA System |
|---|---|---|---|
| Cured Time: | 160℃/15-20min | Acid Number (mgKOH/g): | 30-38 |
| Viscosity (mPa·s/200℃): | 3500±1500 | Softening Point(℃): | 100～115 |
| Glass Transition Temp.(℃): | ～ 55 | Usage: | Suitable For Low Temperature Curing Powder Coating |
| Highlight: | HAA Polyester Resins,Low Temperature Curing HAA Polyester |
||
HAA Polyester Resins 95/5 for Low Temperature Curing Powder Coatings
◎Introduction
NH6567 is a saturated carboxyl polyester resin for polyester/primid powder coatings. It is suitable for low-temperature curing powder coatings.
In recent years, with the rapid advancement of my country's large-scale infrastructure investment and industrialization process, lead profiles, as an important application material in the field of construction and machinery industry, have experienced rapid growth in the output and consumption of the entire industry, and my country has also become the world's largest The largest lead profile production base and consumer market.
There are three treatment methods for the surface treatment of lead profiles: anodizing, electrophoresis coating, and powder coating spraying, each of which has a considerable market share. Among them, powder coating has become an important branch of lead profile surface treatment due to its advantages of no solvent, high material reuse rate, and low energy consumption. Compared with the surface treatment methods of anodizing and electrophoretic coating, the pollution degree and energy consumption of water and air are obviously reduced. The mechanical properties of the coating film, such as hardness, wear resistance, acid resistance and other indicators have been greatly improved, the service life is twice as long as that of ordinary anodized lead materials, and the color is rich, which can better reflect the diversification and individualization of buildings. Therefore, lead building materials sprayed with powder coatings are well received by users for their excellent durability, decorative properties, and processability.
The powder coating for ordinary outdoor lead profiles will be exposed to ultraviolet rays during use, resulting in degradation and greatly reduced service life. In addition, due to irresistible factors such as weather, the surface coating will also produce mechanical damage such as cracks, affecting its service life. Therefore, improving the weather resistance and mechanical properties of powder coatings has attracted more and more attention. As an important component of powder coatings, polyester resin is the key to obtaining weather resistance and mechanical properties.
NH6567 features excellent impact resistance and could meet the above requirements.
◎Basic Features
Low temperature curing
Good frost resistance
Good weather resistance
Excellent impact resistance
◎Specifications:
| Appearance |

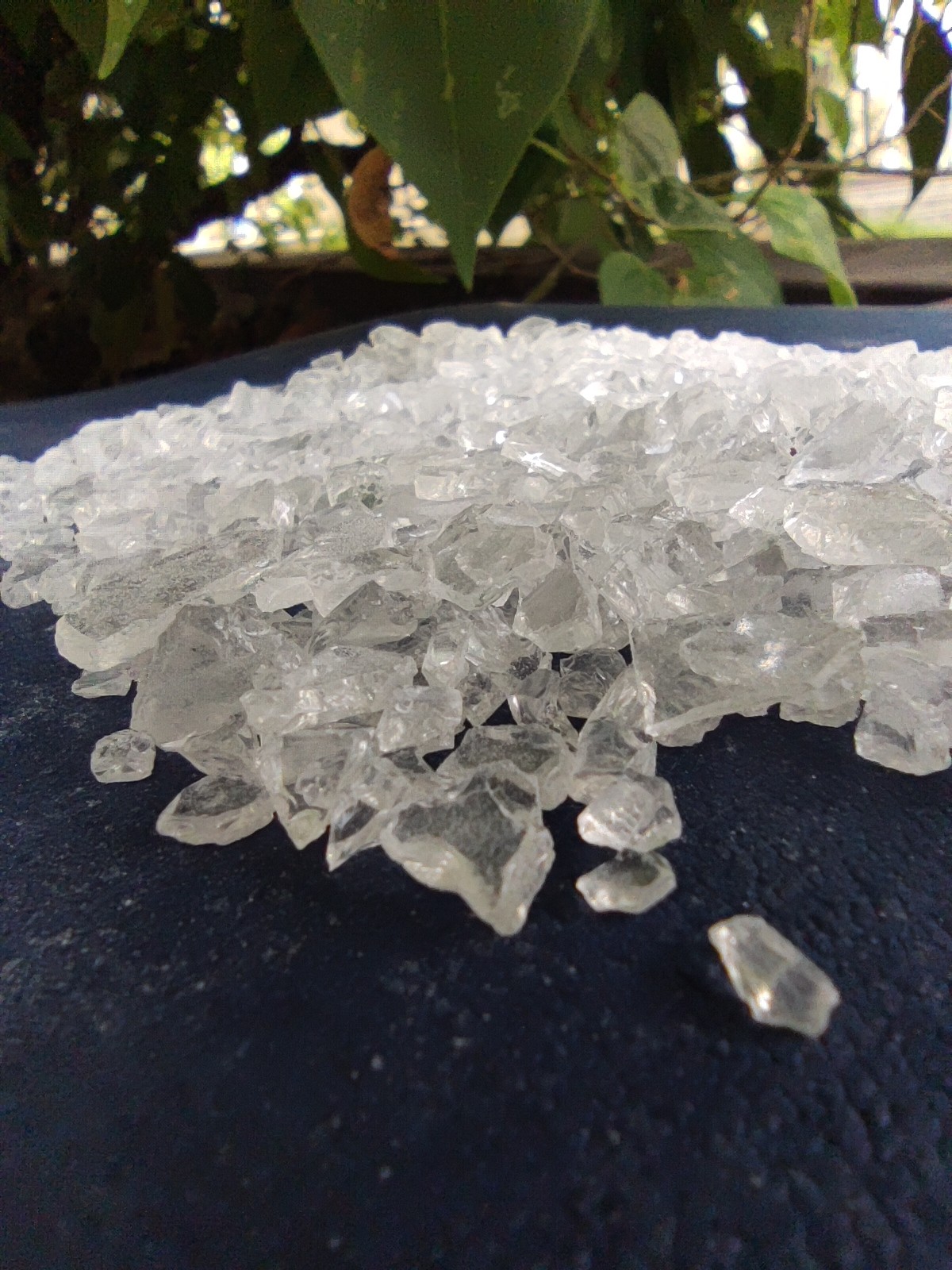

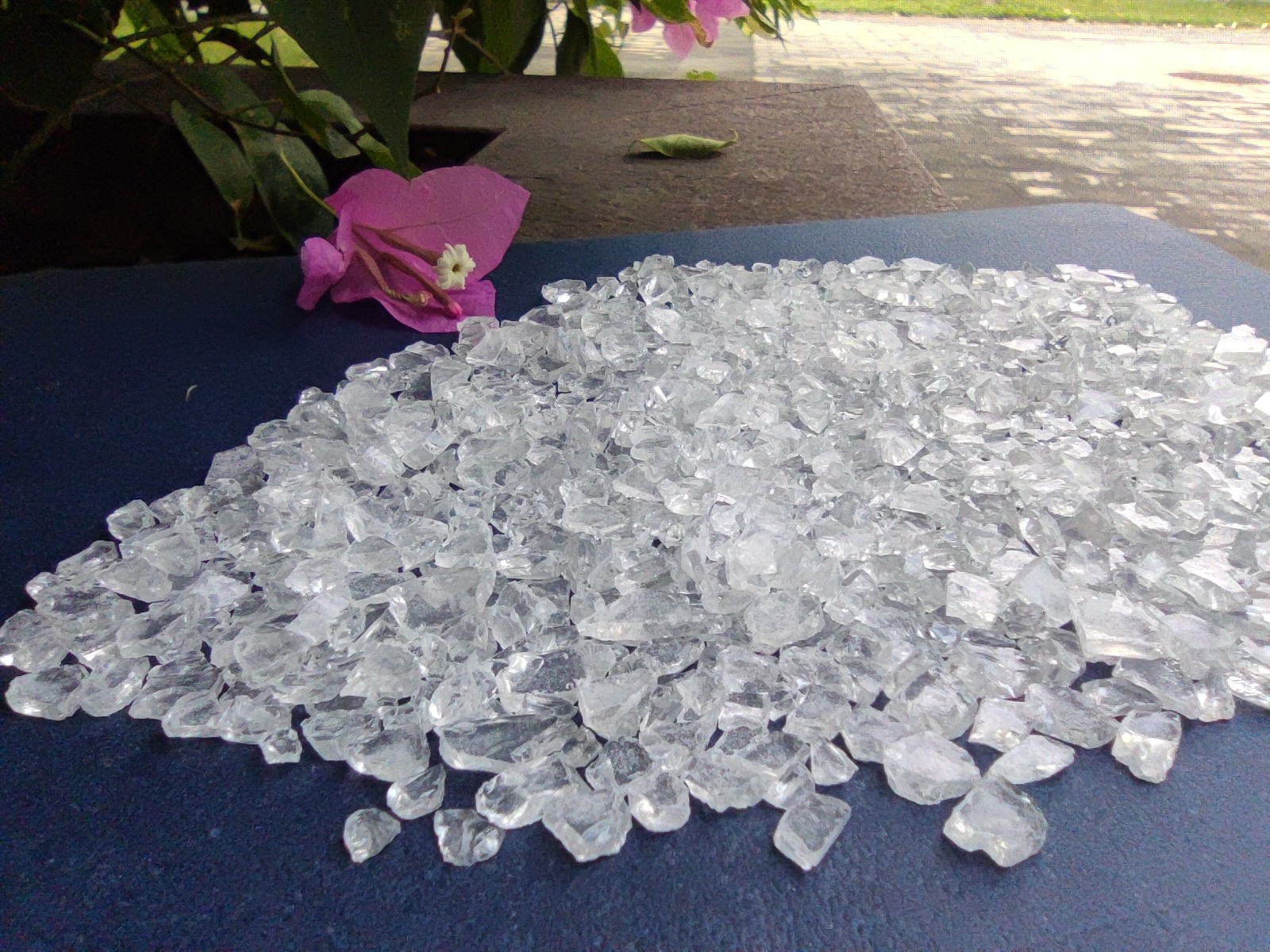

pale yellow transparent flakes (no impurities) |
|
Color (50% DMF) |
≤3 |
| Acid Value (mgKOH/g) | 30～38 |
| Softening Point (℃) | 100～115 |
| Glass Transition Temp. (℃) | ～55 |
| Melting Viscosity (200℃, ICI, mPa·s) |
3500±1500 |
| Reactivity at 180℃ (s, 50%XL552) |
220±90 |
| Curing Requirement |
160℃×15-20min |

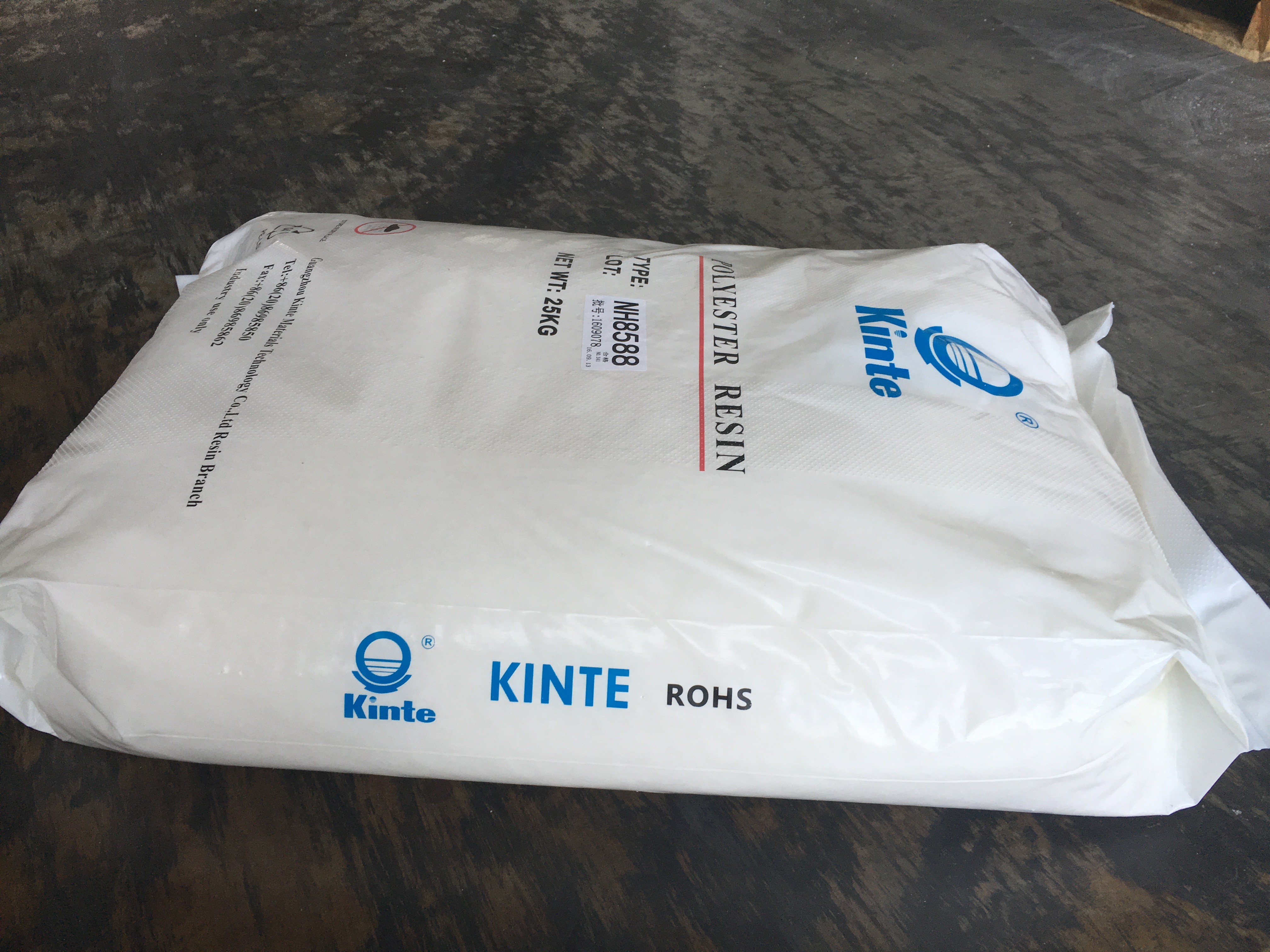

| Packaging | PE Bags, Net Weight 25kg ± 0.1kg / bag |
◎Recommend Formulation:
| NH6567 | XL-552 | Filler ＆ Pigment | Leveling Agent | Benzoin | 701 | 703 |
| 566 | 34 | 380 | 10 | 3 | 3 | 4 |
◎Extrusion Condition:
Two-screw Extruder
Jacket Temperature: 100～110℃
Speed of Revolution: 500～1200rpm
Fineness of Powder: ＜100μm
◎Application Condition:
Electrostatic spraying with: 40～70KV
Coating film thickness: 60～80 μm
Degreased cold-rolled steel: 0.5mm
◎Film Properties:
| Gel Time (180℃, sec) | 100~250 |
| Horizontal Flow (180℃, mm) | 24~29 |
|
Gloss (60°) |
≥85% |
| Bending (φ1mm8 | Pass |
| Adhesive (1mm, grade) | 0 |
| Pencil Hardness | ≥1H |
| Impact (50cm) | Pass |
◎Remarks:
All the polyester resins could be customized to Non-tin (A), anti gas burners (G), tribo gun (T) and anti-blooming (F).
◎More Codes:
| Code | Ratio | Cure Cycle | AV (mgKOH/g) | Viscosity (mPa.s/200℃) | Tg (℃) | Reactivity (s/180℃) | Properties |
| NH6562 | 95/5 | 160℃*10min | 30~35 | 3200~4400 | ~53 | 180-320 | For low bake powder coatings with good flow. |
| NH6563 | 95/5 | 160℃*10min | 30~34 | 3100~4500 | ~58 | 150-210 | For low bake powder coatings with good flow and good mechanical properties. |
| NH6566 | 95/5 |
155℃*15min Or 180℃*6min |
32~38 | 3500~5500 | ~57 | 190-310 | For low bake or fast cure powder coatings with good storage stability and outdoor durability. |
| NH6567 | 95/5 | 160℃*15min | 30~38 | 2000~5000 | ~55 | 130-310 | For low bake powder coatings with good frost resistance, good weather resistance and excellent impact resistance. |
◎Company Profile:
Kinte Materials Science and Technology Co., Ltd. is subordinate to China Machinery Industry Corporation (a key state-owned enterprise directly managed by SASAC, ranking 284 among the world's top 500 in 2021). It is a national high-tech enterprise under China National Electric Apparatus Research Institute Co., Ltd. (Stock Code: 688128), a listed enterprise on the SSE STAR MARKET. Focusing on the R & D, production, and sales of environmentally friendly coatings (powder coatings, waterborne industrial coatings) and powder coating resins, the company is committed to improving the global market competitiveness of China's environmentally friendly coating industry. Now it has become the leader and promoter in China’s technological development of environmentally friendly coatings as well as polyester resins for powder coatings!
We have gained ISO9001 and ISO14000, ISO18001, RoHS, UL certification and QUALICOAT Certificate. Due to the excellent and stable quality, our products always enjoy high reputation at home and oversea, and were sold to more than 30 countries.
Polyester resin branch was founded in 2000, now there are two factories (DongGuan factory and TaiXing Factory) with annual production capacity over 80,000 tons, and the annual production capacity reached 120000 tons by the end of 2020, opening the road to global diversified development. Our clients include many top-tier powder manufacturers in the world such as AKZO, PPG, TIGER, PROTECH, NIPPON, OXYPLAST, JOTUN, SHERWIN, VALSPAR, SINTERPLAST, etc.
We unremittingly stick at the business principle of “Quality is the life, adhere to first-class technology, first-class quality, first-class cost and first-class brand”. We would like to provide a complete set of services and solutions for both domestic and abroad customers and would like to go forward to brilliant future with you together.
